The DN Series planetary gearboxes offer premium performance in terms of radial and axial forces. It combines high performance with excellent reliabtility, simple installation and low cost in a maintenance-free package.
| Backlash | 10-12 ARC MIN |
| Available Sizes | 60, 80, 100 |
| Noise | 64-65 dB |
| Lifetime | 20,000 hours |
| Mounting | Through hole |
| Stage | Ratio | DN060 | DN080 | DN100 | ||
|---|---|---|---|---|---|---|
| Defined Output Torque (Nm) | 1 | 4 | 60 | 135 | 306 | |
| 5 | 55 | 126 | 292 | |||
| 7 | 50 | 132 | 285 | |||
| 9 | 50 | 132 | 285 | |||
| 10 | 4 | 115 | 260 | |||
| 2 | 16 | 60 | 135 | 306 | ||
| 20 | 55 | 126 | 292 | |||
| 25 | 55 | 126 | 292 | |||
| 28 | 50 | 132 | 285 | |||
| 35 | 50 | 132 | 285 | |||
| 36 | 50 | 132 | 285 | |||
| 40 | 40 | 115 | 260 | |||
| 45 | 50 | 132 | 285 | |||
| 49 | 50 | 132 | 285 | |||
| 50 | 40 | 115 | 260 | |||
| 63 | 50 | 132 | 285 | |||
| 70 | 40 | 115 | 260 | |||
| 81 | 50 | 132 | 285 | |||
| 90 | 40 | 115 | 260 | |||
| 3 | 100 | 55 | 126 | 292 | ||
| Peak Output Torque (Nm) | 1, 2, 3 | 4~100 | 3x Defined Output Torque | |||
| Backlash (arc min) | 1 | 4~10 | ≤ 10 | ≤ 10 | ≤ 10 | |
| 2 | 16~90 | ≤ 12 | ≤ 12 | ≤ 12 | ||
| Defined Input Speed (RPM) | 1 | 4, 5 | 3300 | 3000 | 2300 | |
| 7~10 | 4000 | 3300 | 2700 | |||
| 2 | 16~40 | 4400 | 3500 | 3000 | ||
| 45~63 | 4800 | 4000 | 3300 | |||
| 70~90 | 5500 | 4700 | 3900 | |||
| Weight (kg) | 1 | 4~10 | 1.30 | 2.30 | 6.00 | |
| 2 | 16~90 | 1.60 | 3.30 | 7.20 | ||
| Torsional Rigidity (NM/arc min) | 1, 2 | 4~90 | 7.00 | 8.00 | 27.00 | |
| Allowable Radial Force (N) | 2800 | 7200 | 8000 | |||
| Allowable Axial Force (N) | 2200 | 5000 | 5600 | |||
| Noise (dB) | 65 | 64 | 64 | |||
| Lifetime (hrs) | 20000 | |||||
| Temperature (C°) | -15°C ~ +90°C | |||||
| Protection Rank | IP64 | |||||
| Lubricant | Synthetic Lubricant, ISO VG220 | |||||
| Mass Moments of Inertia (kg x cm2) | 1 | 4 | 0.30 | 0.33 | 5.09 | |
| 5 | 0.29 | 0.33 | 4.93 | |||
| 7 | 0.28 | 0.31 | 4.83 | |||
| 9 | 0.28 | 0.31 | 4.83 | |||
| 10 | 0.28 | 0.31 | 4.83 | |||
| 2 | 16 | 0.30 | 0.30 | 5.09 | ||
| 20 | 0.30 | 0.30 | 5.07 | |||
| 25 | 0.29 | 0.30 | 4.91 | |||
| 28 | 0.30 | 0.30 | 5.07 | |||
| 35 | 0.30 | 0.30 | 4.91 | |||
| 40 | 0.27 | 0.30 | 4.80 | |||
| 50 | 0.27 | 0.30 | 4.80 | |||
| 70 | 0.27 | 0.30 | 4.80 | |||
| 3 | 100 | 0.27 | 0.30 | 4.80 | ||

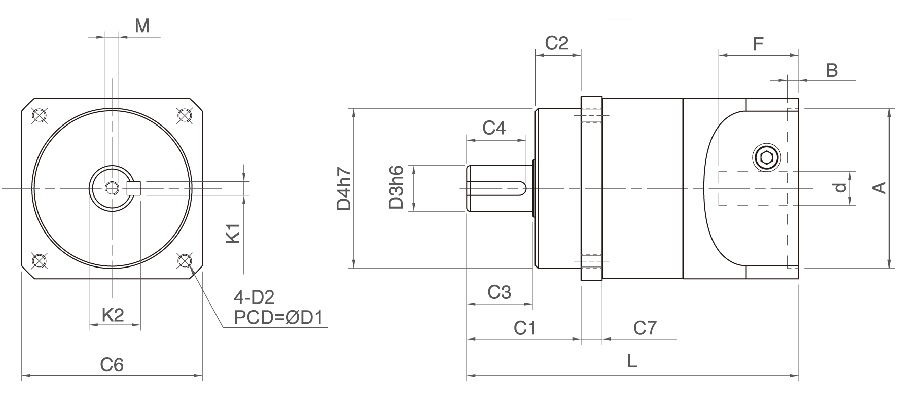

| DN060 | DN080 | DN100 | |
|---|---|---|---|
| D1 | 70.0 | 90.0 | 115.0 |
| D2 | M5 | M6 | M8 |
| D3 | 16 (12~16) | 20 (18~22) | 24 (22~30) |
| D4 | 50.0 | 70.0 | 90.0 |
| C1 | 32.0 | 50.0 | 55.0 |
| C2 | 11.0 | 20.0 | 14.0 |
| C3 | 20.0 | 29.0 | 40.0 |
| C4 | 18.0 | 25.0 | 35.0 |
| C6 | 62.0 | 79.0 | 98.0 |
| C7 | 13.5 | 9.0 | 15.4 |
| L1 | 116.0 | 145.0 | 168.0 |
| L2 | 136.0 | 176.0 | 200.0 |
| M | M4 x 0.7 x 15 | M6 x 1.0 x 15 | M8 x 1.0 x 20 |
| K1 | 5.0 | 6.0 | 8.0 |
| K2 | 18.0 | 21.5 | 27.0 |
| d | ≤ 14.0 | ≤ 24.0 | ≤ 28.0 |
| A | 30~50 | 50~80 | 50~80 |
| B | 6.0 | 6.0 | 8.0 |
| F | ≤ 32.0 | ≤ 35.0 | ≤ 47.0 |
